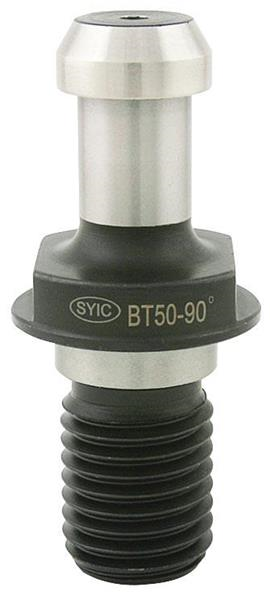

BT50-90° Coolant Pull Stud
- Item Code: 17828-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
All mating surfaces are precision ground. Manufactured to the highest standards for maximum safety and long life. Hardened for maximum longevity.
Tech Specs
Back To Top| Spindle Taper | BT50 Taper Holders |
|---|---|
| Style | Coolant |
| Diameter | 38mm |
| Brand | Techniks |
| Neck | 17mm |
| Angle | 90° |
| Knob Diameter | 23mm |
| Overall Length | 85mm |
| Threads | M24 |
| For Use With | BT50 Taper Holders |
| Hole | 5mm |
