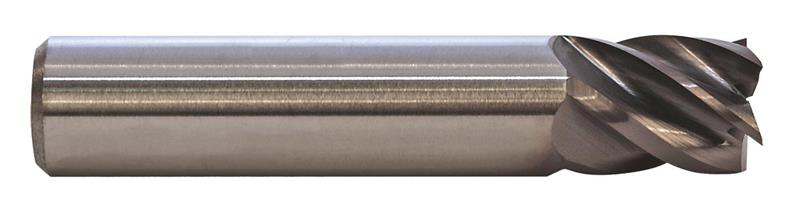

12mm Diameter, 26mm LOC, 83mm OAL Carbide ALtima® Coated TuffCut® XR 5-Flute End Mill with 0.75mm Radius

  • Item Code: 17847202A
  • Brand: MA Ford
  • Unit Size: 1

Description

Tuff Cut® XR - Series 178

Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.

ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.

Features Tech Specs

Features

Back To Top
    • Designed for extreme productivity
    • Gain 20% or more in productivity over 4 flute styles
    • Smooth cutting action to eliminate vibration

Tech Specs

Back To Top
Overall Length 83mm
Material Solid Carbide
Metric Cutting Diameter 12.00 mm
Radius Metric 0.75 mm
Radius Metric 0.75 mm
Brand MA Ford
Brand MA Ford
Series Tuff Cut® XR
Type End Mill
Helix 38°
Length of Cut 26mm
Length of Cut 26mm
Coating AlTiN
Coating AlTiN
Decimal Cutting Diameter 0.4724"
Decimal Cutting Diameter 0.4724"
Number of Flutes 5
Number of Flutes 5
Shank Diameter 12mm
Shank Diameter 12mm
