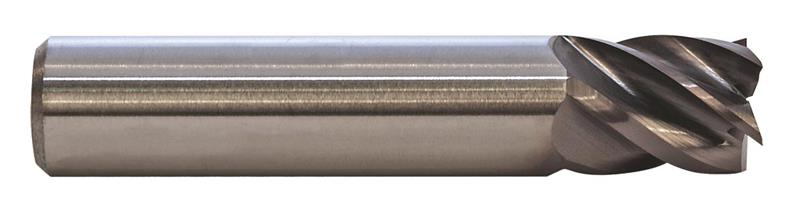

1/2 Inch Diameter, 5/8 Inch LOC, 2-1/2 Inch OAL Carbide ALtima® Coated TuffCut® XR 5-Flute End Mill with 0.030 Radius

  • Item Code: 17850004A
  • Brand: MA Ford
  • Unit Size: 1

Description

Tuff Cut® XR - Series 178

Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.

ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.

Features Tech Specs

Features

Back To Top
    • Designed for extreme productivity
    • Gain 20% or more in productivity over 4 flute styles
    • Smooth cutting action to eliminate vibration

Tech Specs

Back To Top
Helix 38°
Helix 38°
Material Solid Carbide
Material Solid Carbide
Overall Length 2-1/2 Inch
Overall Length 2-1/2 Inch
Number of Flutes 5
Number of Flutes 5
Brand MA Ford
Brand MA Ford
Fractional Cutting Diameter 1/2"
Fractional Cutting Diameter 1/2"
Series Tuff Cut® XR
Series Tuff Cut® XR
Length of Cut 5/8 Inch
Length of Cut 5/8 Inch
Shank Diameter 1/2 Inch
Shank Diameter 1/2 Inch
Coating AlTiN
Coating AlTiN
Decimal Cutting Diameter 0.5000"
Decimal Cutting Diameter 0.5000"
Radius Decimal 0.0300"
Radius Decimal 0.0300"
Type End Mill
Type End Mill
