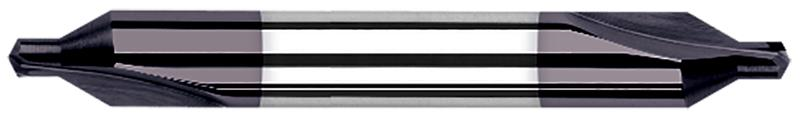

0.0200 in. (.5 mm) Drill Diameter x 90 Deg. Included 2 Flute AlTiN Coated Carbide #000 Double Ended Drill and Countersink

  • Item Code: 17905-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Decimal Diameter 0.0200"
Length of Cut 0.0790"
Brand Harvey Tool
Material Solid Carbide
Metric Diameter 0.50 mm
Overall Length Fractional 1-1/2"
Drill Length 0.0200"
Point Angle 118
Shank Diameter 0.1250" (1/8)
Number of Flutes 2
Single/Double End Double End
Angle per Side 45
Included Angle 90
Overall Length Decimal 1.5000"
Wire Diameter #0
