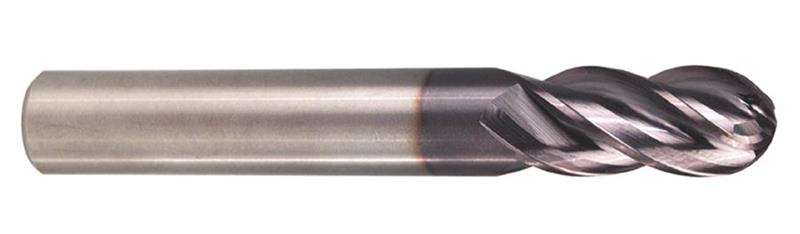

3/32 Inch Diameter, 3/16 Inch LOC, 1-1/2 Inch OAL, Carbide ALtima® Coated TuffCut® XR 4-Flute Variable Helix Ball Nose End Mill

  • Item Code: 17909370A
  • Brand: MA Ford
  • Unit Size: 1

Description

Tuff Cut® XR - Series 179

Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.

ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.

Features Tech Specs

Features

Back To Top
    • Variable helix
    • ALtima coated
    • Straight shank
    • Designed for extreme productivity
    • Unique flute geometry reduces harmonics at increased feeds and speed

Tech Specs

Back To Top
Helix Angle 35°/38°
Material Solid Carbide
Fractional Diameter 3/32"
Overall Length 1-1/2 Inch
Series Tuff Cut® XR
Brand MA Ford
Length of Cut 3/16 Inch
Number of Flutes 4
Shank Diameter 1/8 Inch
Coating/Finish AlTiN
Type End Mill
Decimal Diameter 0.0937"
