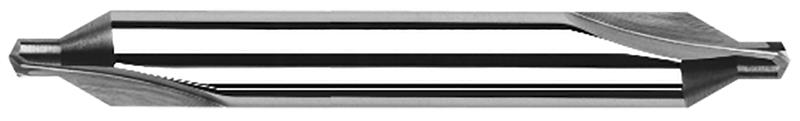

0.0781 in. (5/64) Drill Diameter x 90 Deg. Included 2 Flute Carbide #2 Double Ended Drill and Countersink

  • Item Code: 17940-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 45
Included Angle 90
Shank Diameter 0.1875" (3/16)
Wire Diameter #2
Material Solid Carbide
Point Angle 118
Brand Harvey Tool
Length of Cut 0.1560" (5/32)
Overall Length Decimal 2.0000"
Drill Length 0.0780" (5/64)
Overall Length Fractional 2"
Coating/Finish None
Number of Flutes 2
Single/Double End Double End
Decimal Diameter 0.0781"
Fractional Diameter 5/64"
