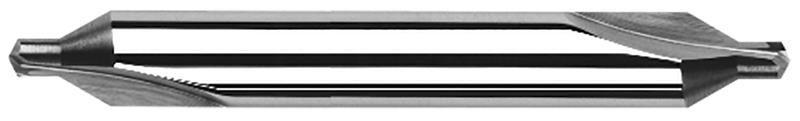

0.2188 in. (7/32) Drill Diameter x 90 Deg. Included 2 Flute Double-Ended Carbide #6 Combined Drill & Countersink

  • Item Code: 17980
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 Deg., 82 Deg., and 90 Deg. included angles - Plain Type
    • 2 Flutes
    • 118 Deg. included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Length 0.2180" (7/32)
Angle per Side 45
Material Solid Carbide
Overall Length Fractional 3"
Point Angle 118
Brand Harvey Tool
Decimal Diameter 0.2188"
Overall Length Decimal 3.0000"
Shank Diameter 0.5000" (1/2)
Fractional Diameter 7/32"
Wire Diameter #6
Length of Cut 0.4240"
Included Angle 90
Number of Flutes 2
Coating/Finish None
Single/Double End Double End
