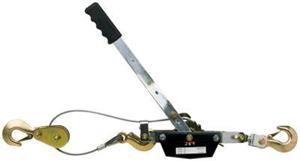

12 Foot Lift, 1 Ton, JCP-1, Cable Puller

  • Item Code: 180410
  • Brand: Jet
  • Unit Size: 1

Description

JET® JCP Series Cable Pullers incorporate proven industrial designs that lift, lower, stretch or pull heavy loads. Available in 1, 2 and 4 Ton configurations, JET JCP Series Cable Pullers are manufactured with lightweight zinc-plated steel to resist corrosion and a double sealed ratchet wheel brake system increasing safety on the jobsite. JET JCP Series Cable Pullers comply with ANSI/ASME B30.21 standards

Features Tech Specs

Features

Back To Top
    • General purpose cable puller designed to lift, lower, stretch or pull heavy loads
    • 1-Ton to 4-Ton capacities
    • Lightweight zinc plated steel construction to resist corrosion
    • Double solid cast aluminum ratchet wheel brake system hold load securely in any position
    • Concealed spring lever control prevents accidental release
    • Drop forged hooks with safety latches standard
    • Aircraft quality 3/16�� cable
    • Snatch block included with JCP-2 and JCP-4 models
    • Complies with ANSI/ASME B30.21 standards
    • Load tested to 125% of capacity with certificate

Tech Specs

Back To Top
Gross Weight (lbs.) 8.55
Handle Length (In.) 16-1/2
Headroom (In.) 17
Maximum Lift (Ft.) 12
Model Number JCP-1
UPC 662755101946
Country of Origin CN
Brand Jet
Load Capacity (Tons) 1
Wire Rope Diameter (In.) 3/16"
Weight (Lbs.) 7
