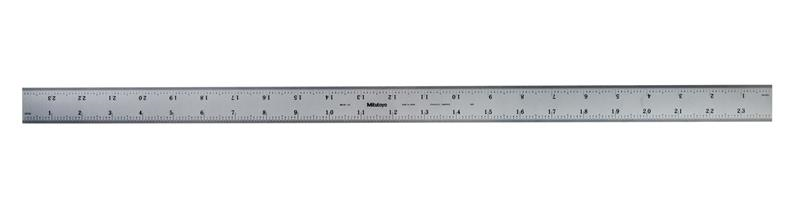

24 Inch, 16R Graduation, Steel Rule, 13/16 Inch Wide, Rigid, Satin Chrome Finish Tempered Stainless Steel, (1/32, 1/60, 1/50, 1/100)

  • Item Code: 182-162
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Clear graduations on satin-chrome finish.
    • Stainless tempered.

Tech Specs

Back To Top
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Inch 24 In
Range 0 - 24 In
Finish Satin Chrome
Length Measurement 24 In
Individual or Set Individual
Brand Mitutoyo
Material Stainless Steel
Thickness 3/64 In
Accuracy +.007 In/ -.0035 In
Resolution or Graduation 1/32 In; 1/64 In; 1/50 In; 1/100 In
Case Material Vinyl Sleeve
Primary Measuring Range Lower - Inch 0 In
Width 13/16 In
