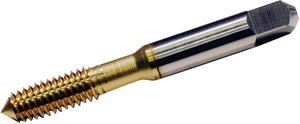

#8-32 HSS Uncoated H5 Bottom Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18208-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Brand WIDIA
Cutting Direction Right
Chamfer Bottomming
Coolant Through No
Thread Size #8 - 32
Material HSS
Thread Diameter (in.) 0.1640"
Overall Length Inches 2.1300"
Series TRU-LEDE
Thread Length (in.) 0.3750"
Adapter/Shank/Bore Dia (in.) 0.1680"
Overall Length Metric 54.102 mm
Thread Diameter (mm) 4.17 mm
Thread Length (mm) 9.53 mm
Adapter/Shank/Bore Dia (mm) 4.27 mm
Thread Limit H5
Type Forming Tap
Coating/Finish Uncoated
