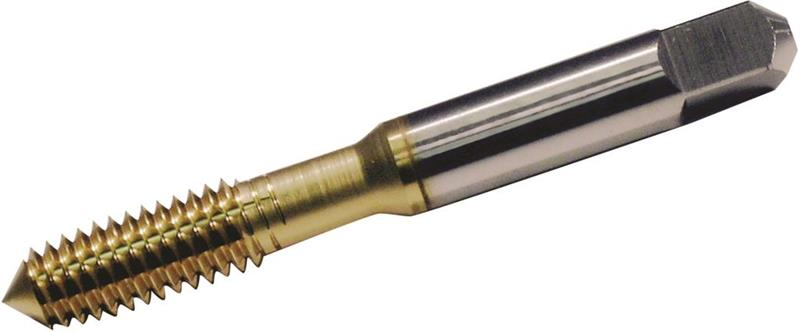

#10-24 HSS Uncoated H4 Bottoming TRU-LEDE™ Fe Thread Forming Tap
- Item Code: 18215
- Brand: WIDIA
- Unit Size: 1
Description
Series 5900
Tru-Lede Fe Taps
Forming Taps
Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Plug Entry Taper
Tech Specs
Back To Top| Shank Diameter | 0.1940 Inch |
|---|---|
| Product Name | Tap |
| Thread Type | NC/UNC/UNJC |
| Type | Forming |
| Thread Length | 0.5000 Inch |
| Thread Limit | H4 |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Coolant Through (Yes/No) | No |
| Shank Style | Square |
| Threads Per Inch | 24 |
| Brand | WIDIA |
| Coating | Uncoated |
| Diameter | #10 - 24 |
| Overall Length | 2.3800 Inch |
| Unit of Measure | Inch |
