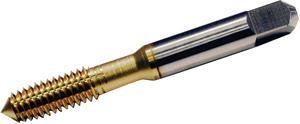

#10-24 HSS Uncoated H4 Plug Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18217-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapter/Shank/Bore Dia (in.) 0.1940"
Adapter/Shank/Bore Dia (mm) 4.93 mm
Overall Length Inches 2.3800"
Coolant Through No
Material HSS
Chamfer Plug
Thread Length (mm) 12.70 mm
Thread Diameter (in.) 0.1900"
Cutting Direction Right
Thread Diameter (mm) 4.83 mm
Thread Length (in.) 0.5000"
Thread Size #10 - 24
Thread Limit H4
Type Forming Tap
Coating/Finish Uncoated
Overall Length Metric 60.452 mm
Brand WIDIA
Series TRU-LEDE
