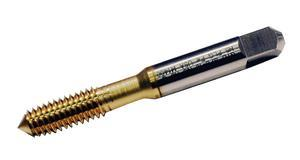

M5 x 0.8 HSS Uncoated H5 Plug Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18257-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Brand WIDIA
Chamfer Bottomming
Cutting Direction Right
Thread Length (in.) 0.5000"
Thread Limit D7
Coolant Through No
Thread Length (mm) 12.70 mm
Thread Type Metric
Material HSS
Thread Diameter (in.) 0.1969"
Series TRU-LEDE
Type Forming Tap
Adapter/Shank/Bore Dia (in.) 0.1940"
Adapter/Shank/Bore Dia (mm) 4.93 mm
Overall Length Inches 2.3800"
Thread Diameter (mm) 5.00 mm
Coating/Finish Uncoated
Overall Length Metric 60.452 mm
Thread Size M5 X 0.8
