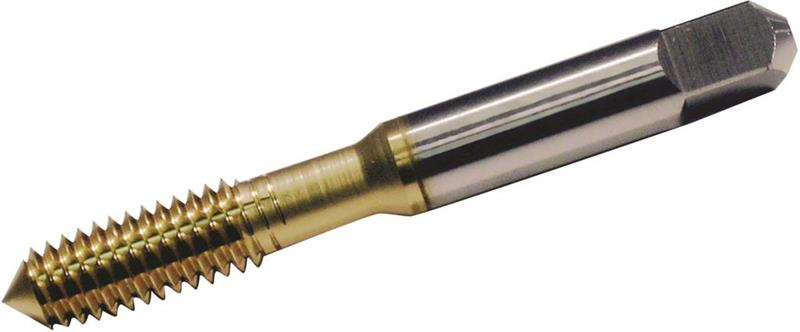

M6 X 1.0 HSS Uncoated D8 Plug TRU-LEDE™ Fe Thread Forming Tap
- Item Code: 18260
- Brand: WIDIA
- Unit Size: 1
Description
Series 5900
Tru-Lede Fe Taps
Forming Taps
Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Plug Entry Taper
Tech Specs
Back To Top| Overall Length | 63.50 MM |
|---|---|
| Square Size | 4.85 MM |
| Thread Length | 15.875 MM |
| Chamfer | Plug |
| Thread Limit | D8 |
| Thread Type | METRIC |
| Product Name | Tap |
| Shank Diameter | 6.477 MM |
| Type | Forming |
| Pitch | 1.00 MM |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Coolant Through (Yes/No) | No |
| Shank Style | Square |
| Brand | WIDIA |
| Coating | Uncoated |
| Diameter | M6 X 1 |
| Unit of Measure | Metric |
