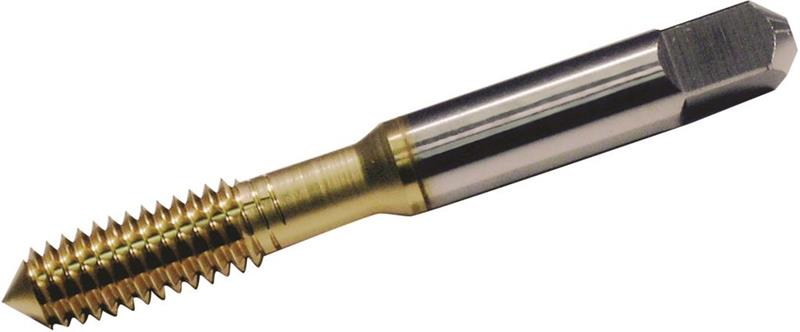

#6-32 HSS TiN Coated H3 Bottoming TRU-LEDE™ Fe Thread Forming Tap
- Item Code: 18300
- Brand: WIDIA
- Unit Size: 1
Description
Series 5900
Tru-Lede Fe Taps
Forming Taps
Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Plug Entry Taper
Tech Specs
Back To Top| Type | Forming |
|---|---|
| Coolant Through (Yes/No) | No |
| Coating | TiN |
| Thread Length | 9.525 MM |
| Thread Limit | H3 |
| Hand of Tool | Neutral |
| Shank Style | Square |
| Threads Per Inch | 32 |
| Shank Diameter | 0.1410 Inch |
| Thread Type | NC/UNC |
| Unit of Measure | Wire |
| Brand | WIDIA |
| Diameter | #6 - 32 |
| Flute Style | Straight |
| Overall Length | 2 Inch |
| Product Name | Tap |
