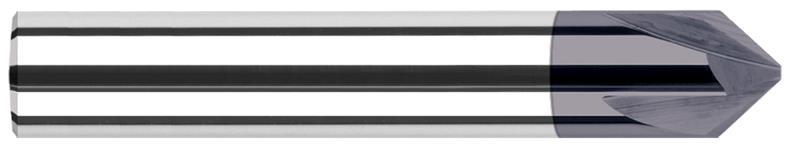

0.5000 in. (1/2) Shank Diameter x 41 Deg. Per Side 4 Flute AlTiN Coated Carbide Flat Chamfer Cutter

  • Item Code: 18341-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Choose from three styles: Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes.
    • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
    • End Cutting: 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.2420"
Center Cutting N
Angle per Side 41
Coating AlTiN
Included Angle 82
Type II
Tip 0.0800"
Brand Harvey Tool
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Material Solid Carbide
Number of Flutes 4
