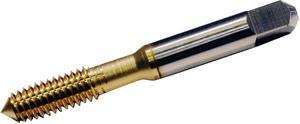

3/8-16 in. HSS TiN Coated H4 Bottom Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18342
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Series TRU-LEDE
Material HSS
Thread Length (mm) 19.05 mm
Adapter/Shank/Bore Dia (in.) 0.3810"
Coolant Through No
Overall Length Metric 74.676 mm
Thread Diameter (mm) 9.53 mm
Adapter/Shank/Bore Dia (mm) 9.68 mm
Brand WIDIA
Chamfer Bottomming
Coating/Finish TiN
Cutting Direction Right
Thread Diameter (in.) 0.3750"
Thread Size 3/8 - 16
Overall Length Inches 2.9400"
Thread Length (in.) 0.7500"
Thread Diameter 3/8"
Thread Limit H5
Thread Type NC/UNC
Type Forming Tap
