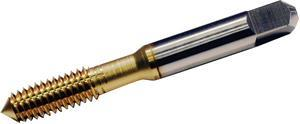

M8 x 1.25 HSS TiN Coated H4 Plug Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18362
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Brand WIDIA
Coating/Finish TiN
Cutting Direction Right
Thread Limit D9
Thread Diameter (in.) 0.3150"
Type Forming Tap
Adapter/Shank/Bore Dia (mm) 8.08 mm
Thread Diameter (mm) 8.00 mm
Thread Size M8 X 1.25
Series TRU-LEDE
Adapter/Shank/Bore Dia (in.) 0.3180"
Overall Length Metric 69.088 mm
Thread Length (mm) 17.48 mm
Chamfer Plug
Material HSS
Thread Type Metric
Coolant Through No
Overall Length Inches 2.7200"
Thread Length (in.) 0.6880"
