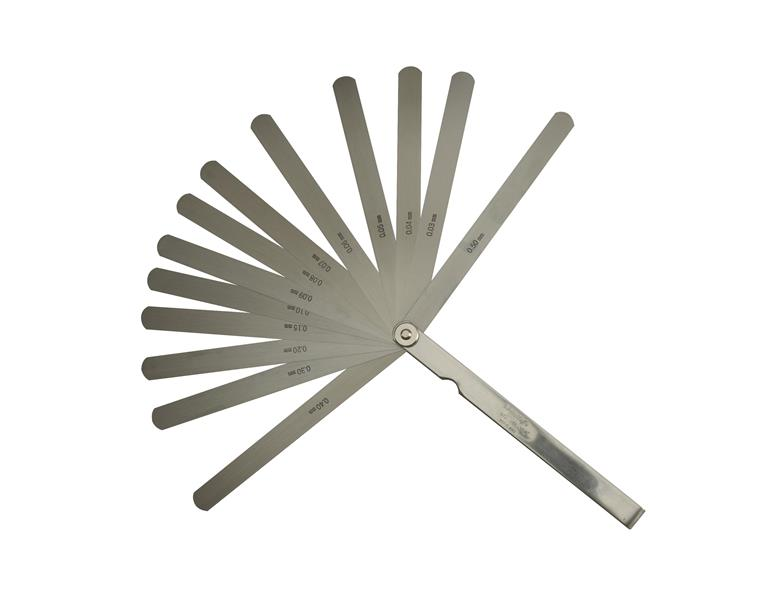

0.03-0.5mm, 150mm Length, Thickness Gage Set, 13 Leaves (0.03-0.1mm by 0.01mm, 0.2-0.5mm by 0.1mm, 0.15mm)

  • Item Code: 184-302S
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Available with tapered leaves.
    • Each leaf is marked with its thickness.
    • Each leaf is detachable if necessary.

Tech Specs

Back To Top
Length Measurement 150mm
Pieces Per Set 13 leaves
Primary Measuring Range Lower - Metric 0.03mm
Range 0.03 - 0.5mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Primary Measuring Range Upper - Metric 0.5mm
Case Material Vinyl Sleeve
Individual or Set Set
Accuracy ±0.003mm to ±0.01mm
Thickness Variable
Material Steel
Resolution or Graduation Variable mm
Width 13mm
Leaf Count 28
