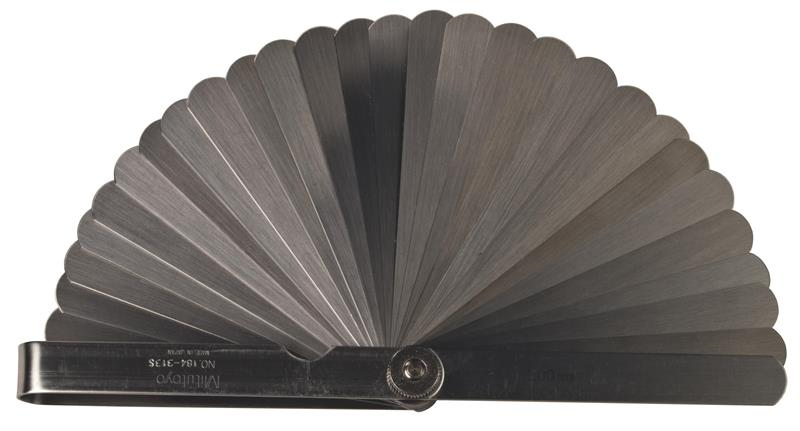

0.05-1mm, 100mm Length, Thickness Gage Set, 28 Leaves (0.05-0.15mm by 0.01mm, 0.2-1mm by 0.05mm)

  • Item Code: 184-313S
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Available with tapered leaves.
    • Each leaf is marked with its thickness.
    • Each leaf is detachable if necessary.

Tech Specs

Back To Top
Length Measurement 100mm
Range 0.05mm - 1mm
Accuracy ±0.003mm to ±0.01mm
Primary Measuring Range Lower - Metric 0.05mm
Primary Measuring Range Upper - Metric 1mm
Thickness Variable
Width 13mm
Individual or Set Set
Resolution or Graduation Variable mm
Case Material Vinyl Sleeve
Brand Mitutoyo
Mechanical or Digital Mechanical
Leaf Count 28
Material Steel
Pieces Per Set 28 leaves
