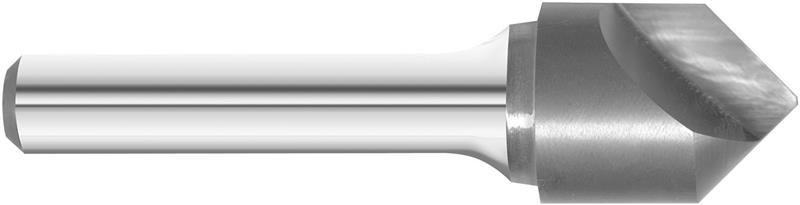

1/2 (.5000) Solid Carbide, Single Flute, 90° Series 1847 Countersink
- Item Code: 18509-F
- Brand: Fullerton
- Unit Size: 1
Description
The 1847 series countersink is designed with a single flute for use in mild steels as well as other non-ferrous materials. The 1847 series is available in 60, 82, and 90 degree included angles from stock. Specially designed Countersinks available upon request.
Features
Back To Top- Single Helical Flute
- 60�, 82� and 90� Included Angles
- For Mild Steels as well as other Non-Ferrous Materials
- Carbide Countersinks
- Steel Shank on .3750�� and above Cutting Diameters
- Right Hand Cut
- Standard Uncoated
- Inch Based Tools
- Dura Carb (Micrograin)
- Shank Diameter Tolerance: +.000�� -.002��
Tech Specs
Back To Top| Flute Spiral Direction | RH |
|---|---|
| Material | Solid Carbide |
| Overall Length (mm) | 76.20 |
| Shank Diameter (Inch) | 1/4 |
| Brand | Fullerton |
| Metric/Inch | Inch |
| Countersink Angle (Degrees) | 90 |
| Direction of Cut | RH |
| End Type | SE |
| Fractional Diameter | 1/2" |
| Metric Diameter | 12.70 mm |
| Overall Length (Decimal Inch) | 3.0000 |
| Coating/Finish | None |
| Shank Diameter (mm) | 6.35 |
| Series | 1847 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Coolant Through | No |
| Overall Length (Inch) | 3 |
| Weldon Flat | No |
| Decimal Diameter | 0.5000" |
| Number of Flutes | 1 |
