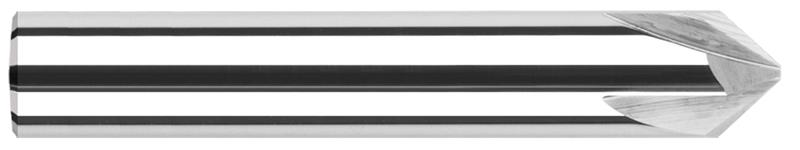

0.2500 in. (1/4) Shank Diameter x 40 Deg. Per Side 3 Flute Carbide Flat Chamfer Cutter

  • Item Code: 18540
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Choose from three styles: Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes.
    • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
    • End Cutting: 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 40
Coating None
Included Angle 80
Type II
Material Solid Carbide
Length of Cut 0.1130"
Tip 0.0600"
Center Cutting N
Number of Flutes 3
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
