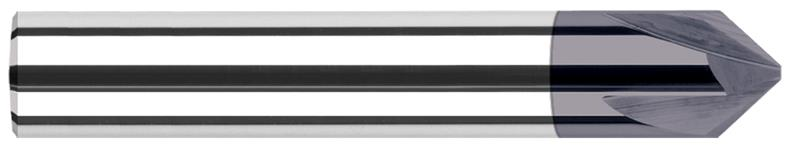

0.2500 in. (1/4) Shank Diameter x 41 Deg. Per Side 3 Flute AlTiN Coated Carbide Flat Chamfer Cutter

  • Item Code: 18541-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Choose from three styles: Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes.
    • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
    • End Cutting: 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
    • CNC ground in the USA

Tech Specs

Back To Top
Center Cutting N
Material Solid Carbide
Coating AlTiN
Number of Flutes 3
Overall Length 2.5000" (2-1/2)
Type II
Brand Harvey Tool
Included Angle 82
Tip 0.0600"
Length of Cut 0.1090" (7/64)
Shank Diameter 0.2500" (1/4)
Angle per Side 41
