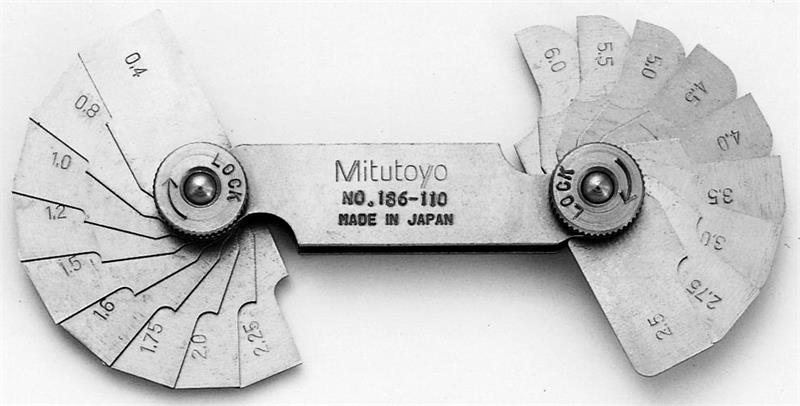

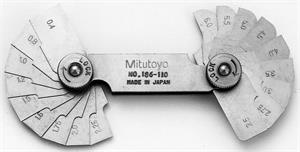

0.4-6mm, Concave/Convex Radius Gage Set, 18 Pairs of Leaves (0.4, 0.8, 1, 1.2, 1.6mm, 1.75 to 3mm by 0.25mm, 3.5 to 6mm by 0.5mm), Locking Clamp

  • Item Code: 186-110
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Radius size is stamped on each gage.
    • Both concave and convex radius gages become a pair.
    • With a locking clamp.

Tech Specs

Back To Top
Leaf Count 18 leaves
Pieces Per Set 18 pairs
Primary Measuring Range Lower - Metric 0.4mm
Primary Measuring Range Upper - Metric 6mm
Range 0.4mm - 6mm
Case Material Vinyl Sleeve
Resolution or Graduation Variable mm
Brand Mitutoyo
Material Steel
Individual or Set Set
Mechanical or Digital Mechanical
