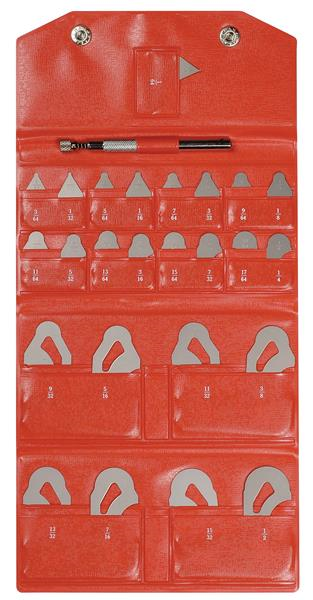

1/64 Inch -1/2 Inch, Concave/Convex Radius Gage Set, 25 Leaves (1/64 Inch to 17/64 Inch by 64ths, 9/32 Inch to 1/2 Inch by 32nds), With Holder

  • Item Code: 186-901
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Furnished with a 4 In long holder to make it possible to chack radii in confined or hard-to-reach locations.
    • The measuring surfaces are precisely finished with smooth, accurate edges.
    • Individual gages for each dimension make it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and pattern-making work.

Tech Specs

Back To Top
Pieces Per Set 25 leaves
Primary Measuring Range Lower - Inch 1/64 In
Range 1/64 In to 1/2 In
Resolution or Graduation Variable In
Leaf Count 25 leaves
Brand Mitutoyo
Primary Measuring Range Upper - Inch 1/2 In
Material Stainless Steel
Individual or Set Set
Mechanical or Digital Mechanical
Case Material Vinyl Sleeve
Accuracy ±.0016 In
Finish Chrome
