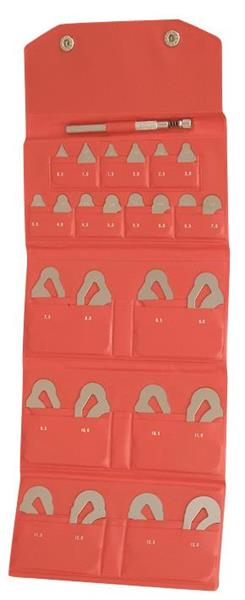

0.4-6mm, Concave/Convex Radius Gage Set, 26 Pairs of Leaves ( 0.5 to 13mm by 0.5mm), Locking Clamp

  • Item Code: 186-902
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The measuring surfaces are precisely finished with smooth, accurate edges.
    • Individual gages for each dimension make it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and pattern-making work.
    • Five measuring locations

Tech Specs

Back To Top
Leaf Count 25 leaves
Primary Measuring Range Lower - Metric 0.5mm
Range 0.5 - 13mm
Case Material Vinyl Sleeve
Primary Measuring Range Upper - Metric 13mm
Brand Mitutoyo
Mechanical or Digital Mechanical
Pieces Per Set 26 leaves
Material Stainless Steel
Resolution or Graduation Variable In
Accuracy ±.0016 In
Finish Chrome
Individual or Set Set
