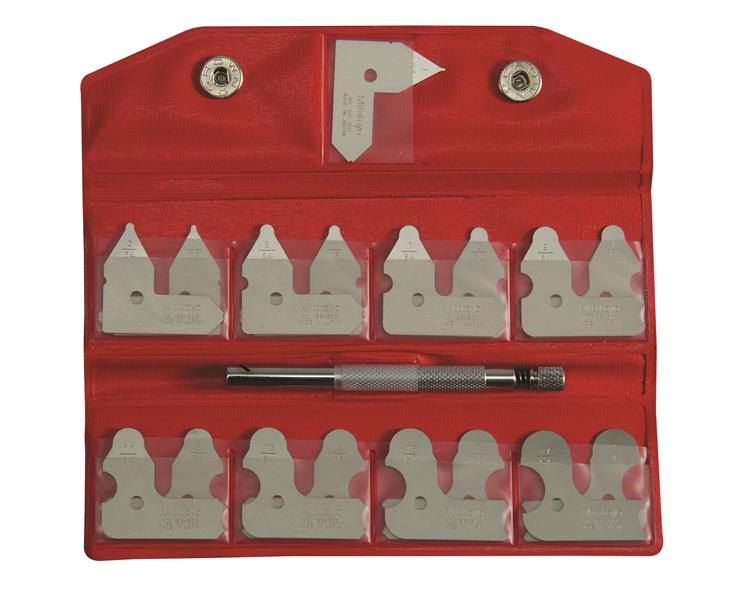

1/64 Inch - 17/64 Inch, Concave/Convex Radius Gage Set, 17 Leaves (1/64 Inch to 17/64 Inch by 64ths)

  • Item Code: 186-903
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The measuring surfaces are precisely finished with smooth, accurate edges.
    • Individual gages for each dimension make it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and pattern-making work.
    • Five measuring locations

Tech Specs

Back To Top
Pieces Per Set 17 pairs
Primary Measuring Range Upper - Inch 17/64 In
Range 1/64 In - 17/64 In
Mechanical or Digital Mechanical
Case Material Vinyl Sleeve
Primary Measuring Range Lower - Inch 1/64 In
Accuracy ±.0016 In
Resolution or Graduation Variable In
Leaf Count 25 leaves
Finish Chrome
Individual or Set Set
Material Stainless Steel
Brand Mitutoyo
