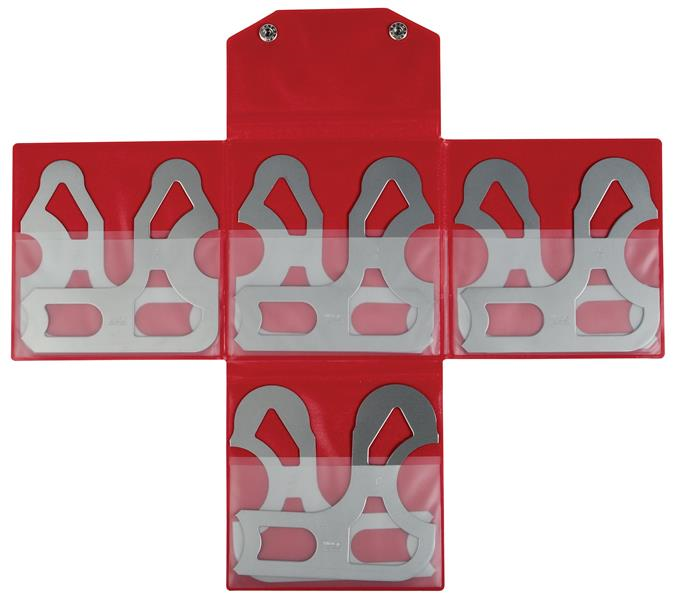

9/16 Inch - 1 Inch, Concave/Convex Radius Gage Set, 8 Leaves (9/16 Inch to 1 Inch by 16ths), With Holder

  • Item Code: 186-905
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The measuring surfaces are precisely finished with smooth, accurate edges.
    • Individual gages for each dimension make it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and pattern-making work.
    • Five measuring locations

Tech Specs

Back To Top
Accuracy ±.0016 In
Leaf Count 8 leaves
Pieces Per Set 8 leaves
Primary Measuring Range Lower - Inch 9/16 In
Range 9/16 In - 1 In
Resolution or Graduation 1/16 In
Brand Mitutoyo
Case Material Vinyl Sleeve
Primary Measuring Range Upper - Inch 1 In
Material Stainless Steel
Finish Chrome
Individual or Set Set
Mechanical or Digital Mechanical
