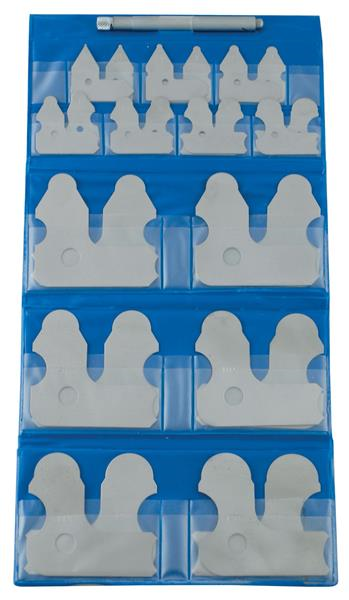

.01 Inch - 0.5 Inch, Concave/Convex Radius Gage Set, 26 Leaves (.010 Inch to .030 Inch by .005, .040 Inch to .1 Inch by .010, .120 Inch to .3 Inch by .020, .350 Inch to .5 Inch by .050), With Holder

  • Item Code: 186-906
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The measuring surfaces are precisely finished with smooth, accurate edges.
    • Individual gages for each dimension make it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and pattern-making work.
    • Five measuring locations

Tech Specs

Back To Top
Leaf Count 26 leaves
Pieces Per Set 26 leaves
Primary Measuring Range Lower - Inch .01 In
Range .01 - .5 In
Brand Mitutoyo
Individual or Set Set
Material Stainless Steel
Mechanical or Digital Mechanical
Case Material Vinyl Sleeve
Primary Measuring Range Upper - Inch .5 In
Accuracy ±.0016 In
Finish Chrome
Resolution or Graduation Variable In
