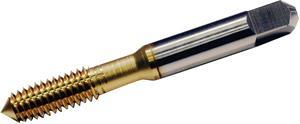

#10-32 HSS TiCN Coated H6 Bottom Entry Taper TRU-LEDE? FE Thread Forming Tap
- Item Code: 18719-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Overall Length Inches |
2.3800" |
| Coolant Through |
No |
| Type |
Forming Tap |
| Thread Diameter (mm) |
4.83 mm |
| Chamfer |
Bottomming |
| Overall Length Metric |
60.452 mm |
| Thread Type |
NF/UNF |
| Brand |
WIDIA |
| Cutting Direction |
Right |
| Thread Diameter (in.) |
0.1900" |
| Thread Length (in.) |
0.5000" |
| Material |
HSS |
| Thread Limit |
H4 |
| Adapter/Shank/Bore Dia (in.) |
0.1940" |
| Adapter/Shank/Bore Dia (mm) |
4.93 mm |
| Series |
TRU-LEDE |
| Thread Size |
#10 - 32 |
| Coating/Finish |
TiCN |
| Thread Length (mm) |
12.70 mm |
