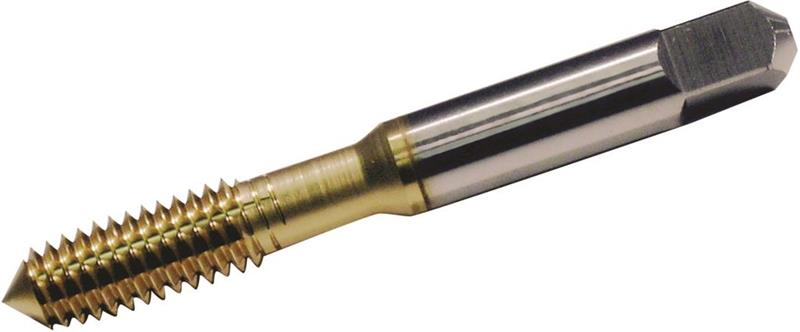

1/4-20 HSS TiCN Coated H4 Bottoming TRU-LEDE™ Fe Thread Forming Tap
- Item Code: 18726
- Brand: WIDIA
- Unit Size: 1
Description
Series 5900
Tru-Lede Fe Taps
Forming Taps
Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw and Fractional
- Plug Entry Taper
Tech Specs
Back To Top| Type | Forming |
|---|---|
| Product Name | Tap |
| Square Size | 0.1910 Inch |
| Shank Diameter | 0.2550 Inch |
| Thread Length | 15.875 MM |
| Thread Type | NC/UNC |
| Diameter | 1/4 - 20 |
| Flute Style | Straight |
| Hand of Tool | Neutral |
| Overall Length | 2.5000 Inch |
| Threads Per Inch | 20 |
| Brand | WIDIA |
| Coating | TiCN |
| Unit of Measure | Inch |
| Thread Limit | H4 |
| Coolant Through (Yes/No) | No |
| Shank Style | Square |
