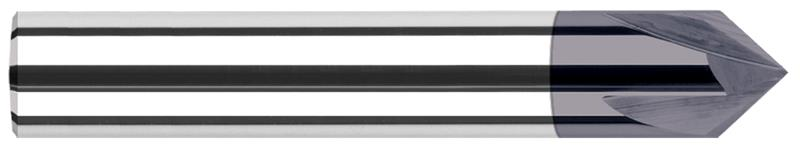

0.1250 in. (1/8) Shank Diameter x 41 Deg. Per Side 2 Flute AlTiN Coated Carbide Pointed Chamfer Cutter

  • Item Code: 18741-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Choose from three styles: Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes.
    • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
    • End Cutting: 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
    • CNC ground in the USA

Tech Specs

Back To Top
Coating AlTiN
Included Angle 82
Length of Cut 0.0720"
Brand Harvey Tool
Material Solid Carbide
Angle per Side 41
Tip 0.0100"
Shank Diameter 0.1250" (1/8)
Center Cutting Y
Type I
Overall Length 1.5000" (1-1/2)
Number of Flutes 2
