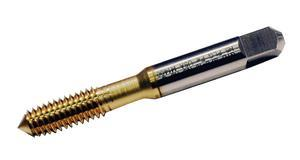

M4 x 0.7 HSS TiCN Coated D6 Bottom Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18755-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Overall Length Inches 2.1300"
Thread Diameter (mm) 4.00 mm
Adapter/Shank/Bore Dia (in.) 0.1680"
Overall Length Metric 54.102 mm
Thread Length (in.) 0.3750"
Chamfer Bottomming
Thread Type Metric
Material HSS
Adapter/Shank/Bore Dia (mm) 4.27 mm
Coolant Through No
Thread Size M4 X 0.7
Type Forming Tap
Coating/Finish TiCN
Thread Diameter (in.) 0.1575"
Brand WIDIA
Cutting Direction Right
Thread Limit D6
Series TRU-LEDE
Thread Length (mm) 9.53 mm
