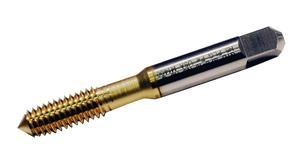

M6 x 1 HSS TiCN Coated D8 Bottom Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18759-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Series TRU-LEDE
Thread Diameter (mm) 6.00 mm
Thread Limit D8
Material HSS
Overall Length Metric 63.50 mm
Thread Diameter (in.) 0.2362"
Thread Length (mm) 15.88 mm
Thread Size M6 X 1
Adapter/Shank/Bore Dia (in.) 0.2550"
Chamfer Bottomming
Coolant Through No
Thread Type Metric
Brand WIDIA
Cutting Direction Right
Overall Length Inches 2.5000"
Thread Length (in.) 0.6250"
Type Forming Tap
Adapter/Shank/Bore Dia (mm) 6.48 mm
Coating/Finish TiCN
