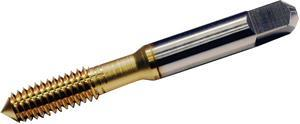

M6 x 1 HSS TiCN Coated D8 Plug Entry Taper TRU-LEDE? FE Thread Forming Tap
- Item Code: 18760-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Adapter/Shank/Bore Dia (in.) |
0.2550" |
| Chamfer |
Plug |
| Thread Diameter (in.) |
0.2362" |
| Thread Limit |
D8 |
| Thread Type |
Metric |
| Coolant Through |
No |
| Material |
HSS |
| Overall Length Metric |
63.50 mm |
| Thread Length (mm) |
15.88 mm |
| Adapter/Shank/Bore Dia (mm) |
6.48 mm |
| Coating/Finish |
TiCN |
| Brand |
WIDIA |
| Series |
TRU-LEDE |
| Thread Length (in.) |
0.6250" |
| Type |
Forming Tap |
| Cutting Direction |
Right |
| Overall Length Inches |
2.5000" |
| Thread Diameter (mm) |
6.00 mm |
| Thread Size |
M6 X 1 |
