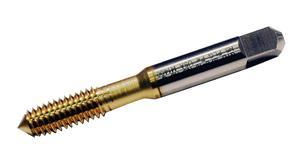

M8 x 1.25 HSS TiCN Coated D9 Plug Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18761
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Series TRU-LEDE
Coating/Finish TiCN
Coolant Through No
Brand WIDIA
Chamfer Bottomming
Cutting Direction Right
Material HSS
Thread Limit D9
Thread Type Metric
Overall Length Inches 2.7200"
Thread Length (in.) 0.6880"
Adapter/Shank/Bore Dia (mm) 8.08 mm
Thread Diameter (in.) 0.3150"
Type Forming Tap
Thread Diameter (mm) 8.00 mm
Thread Size M8 X 1.25
Adapter/Shank/Bore Dia (in.) 0.3180"
Overall Length Metric 69.088 mm
Thread Length (mm) 17.48 mm
