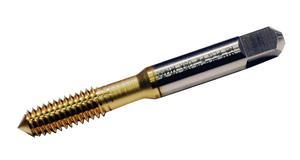

M12 x 1.75 HSS TiCN Coated D11 Bottom Entry Taper TRU-LEDE? FE Thread Forming Tap

  • Item Code: 18765-WIDIA
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Thread Length (mm) 23.83 mm
Thread Length (in.) 0.9380"
Overall Length Metric 85.852 mm
Adapter/Shank/Bore Dia (mm) 9.32 mm
Type Forming Tap
Coating/Finish TiCN
Overall Length Inches 3.3800"
Thread Diameter (mm) 12.00 mm
Thread Size M12 X 1.75
Adapter/Shank/Bore Dia (in.) 0.3670"
Coolant Through No
Thread Limit D11
Cutting Direction Right
Material HSS
Thread Diameter (in.) 0.4724"
Brand WIDIA
Chamfer Bottomming
Series TRU-LEDE
Thread Type Metric
