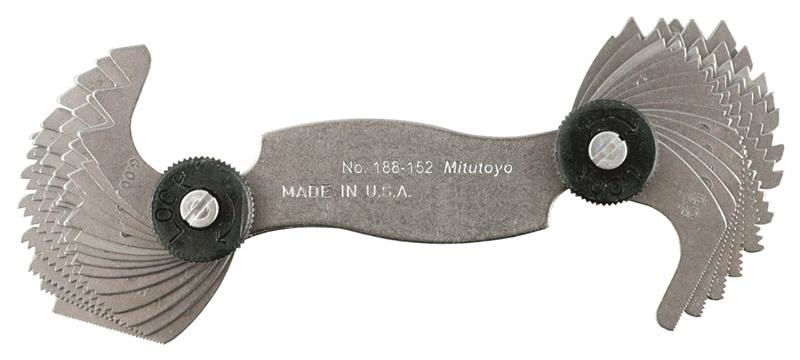

4-56 TPI/0.5-6mm, 60 Degrees, Screw Pitch Gage Set, 28 Leaves (4, 6, 8, 10, 11, 11.5 12, 13, 16, 20, 28, 32, 40, 56 TPI) ( 0.5, 0.75, 1, 1.23, 1.5, 1.75, 2-5 by 0.5, 6mm)

  • Item Code: 188-152
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Thread pitch size is stamped on each gage.
    • Comes with a locking clamp
    • Both concave and convex radius gages become a pair.

Tech Specs

Back To Top
Primary Measuring Range Upper - Inch 56 TPI
Range 0.5 - 6mm / 4 - 56 TPI
Primary Measuring Range Upper - Metric 6mm
Material Steel
Primary Measuring Range Lower - Metric 0.5mm
Pieces Per Set 28 leaves
Primary Measuring Range Lower - Inch 4 TPI
Leaf Count 28
Brand Mitutoyo
Mechanical or Digital Mechanical
Case Material Vinyl Sleeve
Individual or Set Set
Resolution or Graduation Variable TPI
