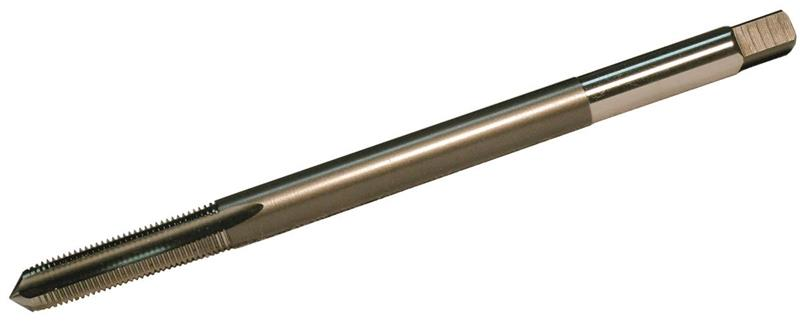

1/4-20 NC HSS 4 Flute Bright Finish H3, 6 Inch Extension Plug Hand Tap
- Item Code: 18839
- Brand: WIDIA
- Unit Size: 1
Description
Series 5303
Hand Taps
Through or Blind Holes in General Machining Applications
Features
Back To Top- Production Taps
- Fractional Sizes
- Plug Chamfer
Tech Specs
Back To Top| Diameter | 1/4 - 20 |
|---|---|
| Type | Hand |
| Overall Length | 6 Inch |
| Thread Length | 1 Inch |
| Threads Per Inch | 20 |
| Square Size | 0.1910 Inch |
| Brand | WIDIA |
| Shank Diameter | 0.2550 Inch |
| Shank Style | Square |
| Unit of Measure | Inch |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Coating | Uncoated |
| Number of Flutes | 4 |
| Thread Type | NC/UNC/UNJC |
| Product Name | Tap |
