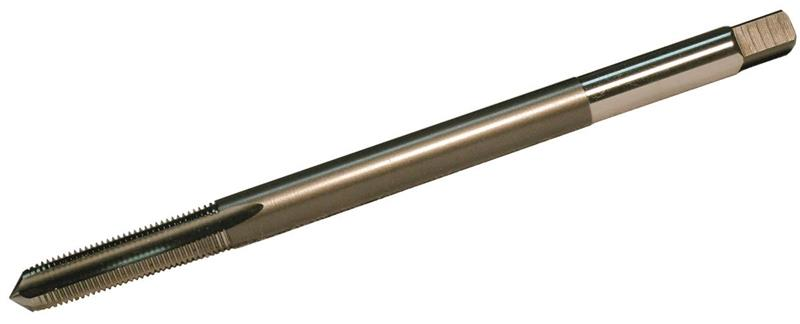

3/8-16 NC HSS 4 Flute Bright Finish H3, 6 Inch Extension Plug Hand Tap
- Item Code: 18851
- Brand: WIDIA
- Unit Size: 1
Description
Series 5303
Hand Taps
Through or Blind Holes in General Machining Applications
Features
Back To Top- Production Taps
- Fractional Sizes
- Plug Chamfer
Tech Specs
Back To Top| Chamfer | Plug |
|---|---|
| Material | HSS |
| Thread Type | NC/UNC/UNJC |
| Diameter | 3/8 - 16 |
| Square Size | 0.2860 Inch |
| Thread Length | 1.2500 Inch |
| Thread Limit | H3 |
| Threads Per Inch | 16 |
| Brand | WIDIA |
| Overall Length | 6 Inch |
| Shank Diameter | 0.3810 Inch |
| Shank Style | Square |
| Coating | Uncoated |
| Unit of Measure | Inch |
| Number of Flutes | 4 |
| Product Name | Tap |
| Type | Hand |
