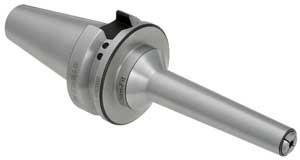

70mm Length, BT30 SBL6 SlimFIT Collet
- Item Code: 18854-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.
Features
Back To Top- Great accuracy at extended lengths
- Balanced to 25,000 RPM at G2.5
- Narrow nose for excellent clearance
Tech Specs
Back To Top| Body Diameter (in) | 0.711 |
|---|---|
| Body Diameter (mm) | 18.062 |
| Nose Diameter (in) | 0.55 |
| Nose Diameter (mm) | 14 |
| Overall Length (mm) | 118.4 |
| Gage Length (in) | 2.76 |
| Gage Length (mm) | 70 |
| Overall Length (in) | 4.66 |
| Unit of Tool | Metric |
| Mount | BT30 |
| Gage Length-Face Contact (in) | 2.68 |
| Gage Length-Face Contact (mm) | 68 |
| Material | H13 Steel |
| Style | Single Ended |
| Overall Diameter (in) | 1.81 |
| Type | SlimFIT Tool Holder |
| Brand | Techniks |
| Shank Size (mm) | N/A |
| Shank Range (in) | 0.094 - 0.25 |
| Shank Size (in) | N/A |
| Collet Series | SlimFIT 6 |
| Overall Diameter (mm) | 46 |
| Shank Range (mm) | 2.39 - 6.35 |
