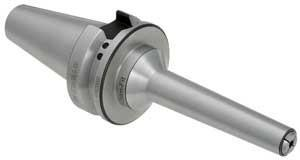

100mm Length, BT30 SBL6 SlimFIT Collet
- Item Code: 18856
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.
Features
Back To Top- Great accuracy at extended lengths
- Balanced to 25,000 RPM at G2.5
- Narrow nose for excellent clearance
Tech Specs
Back To Top| Body Diameter (in) | 0.835 |
|---|---|
| Body Diameter (mm) | 21.2 |
| Gage Length (in) | 3.94 |
| Overall Length (mm) | 148.4 |
| Gage Length-Face Contact (in) | 3.86 |
| Mount | BT30 |
| Unit of Tool | Metric |
| Gage Length (mm) | 100 |
| Shank Size (mm) | N/A |
| Gage Length-Face Contact (mm) | 98 |
| Overall Diameter (mm) | 46 |
| Shank Range (mm) | 2.39 - 6.35 |
| Shank Size (in) | N/A |
| Style | Single Ended |
| Collet Series | SlimFIT 6 |
| Shank Range (in) | 0.094 - 0.25 |
| Material | H13 Steel |
| Overall Length (in) | 5.84 |
| Nose Diameter (in) | 0.55 |
| Overall Diameter (in) | 1.81 |
| Brand | Techniks |
| Nose Diameter (mm) | 14 |
| Type | SlimFIT Tool Holder |
