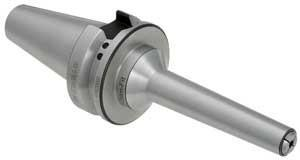

70mm Length, BT40 SBL6 SlimFIT Collet
- Item Code: 18866
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.
Features
Back To Top- Great accuracy at extended lengths
- Balanced to 25,000 RPM at G2.5
- Narrow nose for excellent clearance
Tech Specs
Back To Top| Body Diameter (in) | 0.673 |
|---|---|
| Body Diameter (mm) | 17.1 |
| Mount | BT40 |
| Unit of Tool | Metric |
| Shank Size (in) | N/A |
| Gage Length (in) | 2.76 |
| Gage Length (mm) | 70 |
| Nose Diameter (mm) | 14 |
| Overall Length (mm) | 135.4 |
| Shank Size (mm) | N/A |
| Type | SlimFIT Tool Holder |
| Brand | Techniks |
| Nose Diameter (in) | 0.55 |
| Overall Diameter (mm) | 63 |
| Gage Length-Face Contact (mm) | 68 |
| Material | H13 Steel |
| Collet Series | SlimFIT 6 |
| Overall Length (in) | 5.33 |
| Shank Range (mm) | 2.39 - 6.35 |
| Gage Length-Face Contact (in) | 2.68 |
| Overall Diameter (in) | 2.48 |
| Shank Range (in) | 0.094 - 0.25 |
| Style | Single Ended |
