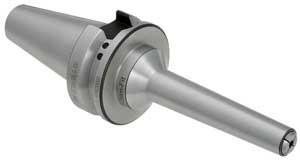

100mm Length, BT40 SBL6 SlimFIT Collet
- Item Code: 18868
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Techniks Tool Holders are backed by our 100% Performance Guarantee.
Features
Back To Top- Great accuracy at extended lengths
- Balanced to 25,000 RPM at G2.5
- Narrow nose for excellent clearance
Tech Specs
Back To Top| Body Diameter (in) | 0.791 |
|---|---|
| Body Diameter (mm) | 20.1 |
| Gage Length-Face Contact (mm) | 98 |
| Gage Length-Face Contact (in) | 3.86 |
| Overall Diameter (mm) | 63 |
| Shank Range (mm) | 2.39 - 6.35 |
| Shank Size (in) | N/A |
| Collet Series | SlimFIT 6 |
| Type | SlimFIT Tool Holder |
| Material | H13 Steel |
| Shank Range (in) | 0.094 - 0.25 |
| Overall Diameter (in) | 2.48 |
| Overall Length (mm) | 165.4 |
| Style | Single Ended |
| Unit of Tool | Metric |
| Brand | Techniks |
| Nose Diameter (mm) | 14 |
| Overall Length (in) | 6.5 |
| Gage Length (in) | 3.94 |
| Gage Length (mm) | 100 |
| Mount | BT40 |
| Nose Diameter (in) | 0.55 |
| Shank Size (mm) | N/A |
