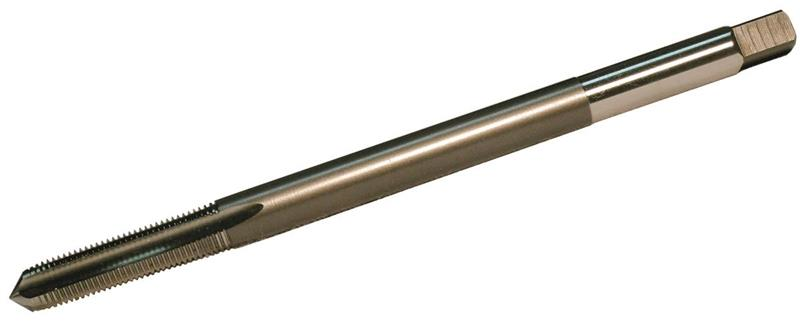

8-32 NC HSS 4 Flute Bright Finish H3, 6 Inch Extension Plug Hand Tap
- Item Code: 18891
- Brand: WIDIA
- Unit Size: 1
Description
Series 5305
Hand Taps
Blind Holes in General Machining Applications
Features
Back To Top- Production Taps
- Machine Screw Sizes
- Bottoming Chamfer
Tech Specs
Back To Top| Product Name | Tap |
|---|---|
| Thread Limit | H3 |
| Unit of Measure | Inch |
| Type | Hand |
| Coating | Uncoated |
| Number of Flutes | 4 |
| Square Size | 0.1310 Inch |
| Brand | WIDIA |
| Material | HSS |
| Overall Length | 6 Inch |
| Shank Style | Square |
| Thread Length | 0.7500 Inch |
| Chamfer | Plug |
| Diameter | #8 - 32 |
| Shank Diameter | 0.1680 Inch |
| Thread Type | NC/UNC/UNJC |
| Threads Per Inch | 32 |
