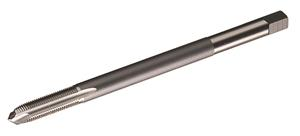

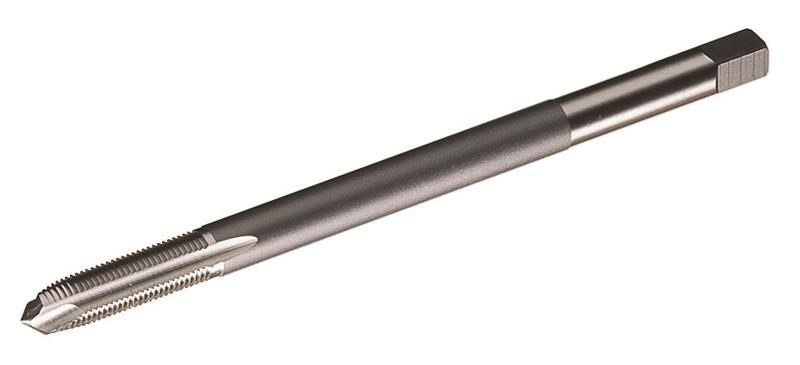

1/4-20 UNC, High Speed Steel, H3 Plug, 2-Flute, 6 Inch Extension Gun Tap
- Item Code: 18936
- Brand: WIDIA
- Unit Size: 1
Description
Series 5301
GUN Taps for Through Holes in General Machining Applications
Features
Back To Top- Production Taps
- Spiral Point
- Plug Chamfer
Tech Specs
Back To Top| Threads Per Inch | 20 |
|---|---|
| Diameter | 1/4 - 20 |
| Overall Length | 6 Inch |
| Thread Length | 1 Inch |
| Square Size | 0.1910 Inch |
| Thread Type | NC/UNC/UNJC |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Product Name | Tap |
| Shank Style | Square |
| Brand | WIDIA |
| Coating | Uncoated |
| Number of Flutes | 2 |
| Shank Diameter | 0.2550 Inch |
| Unit of Measure | Inch |
