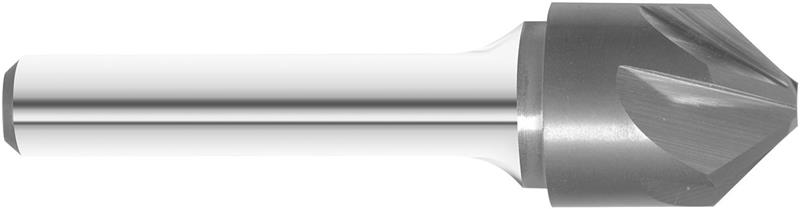

3/8 (.3750) Solid Carbide, Chatterless, 6-Flute 90° Series 1835 Countersink
- Item Code: 18937-FULLERTON
- Brand: Fullerton
- Unit Size: 1
Description
The 1835 series is designed with 6 flutes for chatterless operation in hard materials. The 1835 series is available in 60, 82, and 90 degree from stock. Specially designed Countersinks available upon request.
Features
Back To Top- 6 Flute
- 60�, 82� and 90� Included Angles
- Chatterless Design for Hard Materials
- Carbide Countersinks
- Steel Shank on .3750�� and above Cutting Diameters
- Right Hand Cut
- Standard Uncoated
- Inch Based Tools
- Dura Carb (Micrograin)
- Shank Diameter Tolerance: +.000�� -.002��
Tech Specs
Back To Top| Series | 1835 |
|---|---|
| Brand | Fullerton |
| Metric Diameter | 9.53 mm |
| Metric/Inch | Inch |
| Overall Length (Decimal Inch) | 2.7500 |
| Coolant Through | No |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (mm) | 69.85 |
| Coating/Finish | None |
| Direction of Cut | RH |
| Shank Diameter (mm) | 6.35 |
| End Type | SE |
| Number of Flutes | 6 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Weldon Flat | No |
| Fractional Diameter | 3/8" |
| Countersink Angle (Degrees) | 90 |
| Decimal Diameter | 0.3750" |
| Flute Spiral Direction | RH |
| Shank Diameter (Inch) | 1/4 |
