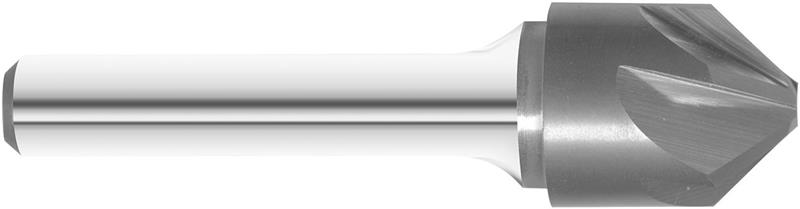

5/8 (.6250) Solid Carbide, Chatterless, 6-Flute 90° Series 1835 Countersink
- Item Code: 18962
- Brand: Fullerton
- Unit Size: 1
Description
The 1835 series is designed with 6 flutes for chatterless operation in hard materials. The 1835 series is available in 60, 82, and 90 degree from stock. Specially designed Countersinks available upon request.
Features
Back To Top- 6 Flute
- 60�, 82� and 90� Included Angles
- Chatterless Design for Hard Materials
- Carbide Countersinks
- Steel Shank on .3750�� and above Cutting Diameters
- Right Hand Cut
- Standard Uncoated
- Inch Based Tools
- Dura Carb (Micrograin)
- Shank Diameter Tolerance: +.000�� -.002��
Tech Specs
Back To Top| Countersink Angle (Degrees) | 90 |
|---|---|
| Decimal Diameter | 0.6250" |
| Fractional Diameter | 5/8" |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (mm) | 69.85 |
| Shank Diameter (mm) | 9.53 |
| Flute Spiral Direction | RH |
| Overall Length (Decimal Inch) | 2.7500 |
| Shank Diameter (Inch) | 3/8 |
| Weldon Flat | No |
| Direction of Cut | RH |
| Material | Solid Carbide |
| Metric Diameter | 15.88 mm |
| Coolant Through | No |
| Series | 1835 |
| Brand | Fullerton |
| End Type | SE |
| Metric/Inch | Inch |
| Number of Flutes | 6 |
| Coating/Finish | None |
| Shank Diameter (Decimal Inch) | 0.3750 |
