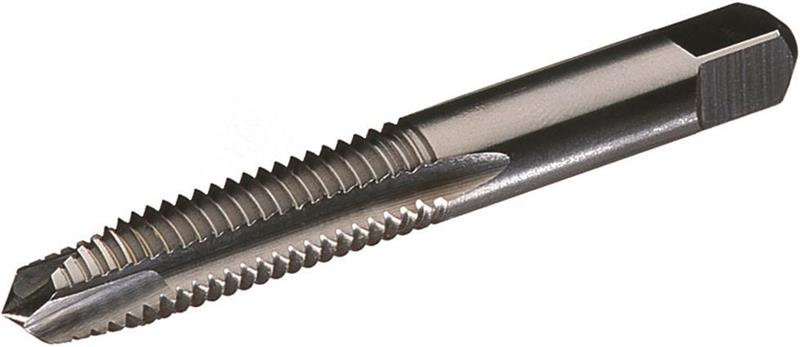

M10 x 1.50 HSS TiCN Coated D6 3-Flute Gun Tap
- Item Code: 19009
- Brand: WIDIA
- Unit Size: 1
Description
Series 5351/2351
Spiral Point, Plug Chamfer
Through Holes in General Machining Applications
Tech Specs
Back To Top| Coolant Through (Yes/No) | No |
|---|---|
| Diameter | M10 X 1.5 |
| Unit of Measure | Metric |
| Chamfer | Plug |
| Pitch | 1.50 MM |
| Shank Diameter | 9.677 MM |
| Thread Type | METRIC |
| Number of Flutes | 3 |
| Shank Style | Square |
| Thread Limit | D6 |
| Product Name | Tap |
| Brand | WIDIA |
| Coating | TiCN |
| Hand of Tool | Right Hand |
| Thread Length | 31.75 MM |
| Overall Length | 74.613 MM |
