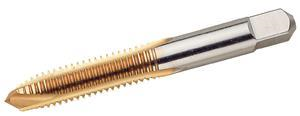

#12-24 UNC HSS TiN H3 Plug Chamfer 2 Flute Gun Tap
- Item Code: 19017-WIDIA
- Brand: WIDIA
- Unit Size: 1
| Adapter/Shank/Bore Dia (mm) |
5.59 mm |
| Thread Length (mm) |
23.81 mm |
| Thread Limit |
H3 |
| Cutting Direction |
Right |
| Series |
GUN |
| Thread Diameter (in.) |
0.2160" |
| Brand |
WIDIA |
| Number of Flutes |
2 |
| Overall Length Inches |
2.3750" |
| Thread Size |
#12 - 24 |
| Coolant Through |
No |
| Thread Diameter (mm) |
5.49 mm |
| Type |
Spiral Point Tap |
| Adapter/Shank/Bore Dia (in.) |
0.2200" |
| Chamfer |
Plug |
| Material |
HSS |
| Overall Length Metric |
60.325 mm |
| Coating/Finish |
TiCN |
| Thread Length (in.) |
0.9375" |
